Fetures
Basic
- TDM Call:call from TDM, and obtain IP address according to specified routing rules after number transformation
- IP Call:the incoming call from the VoIP network is connected to the TDM through routing and number transformation
- Number Transformation: delete the number at the head or tail of the number, or add prefix or suffix to the number
- TDM/ VoIP Routing: the user can set the routing path from IP to TDM or from TDM to IP
- Voice Capability: Echo Cancellation, Dynamic Jitter Buffer, VAD, CNG, PLC
Signal & Protocol
- SS7:SS7 TUP ISUP
- ISDN: ISDN PRI
- SIP:SIP V1.0/2.0、RFC3261
- Codec: G.711A、G.711U、G.729、G722、G723、iLBC、AMR-NB、SILK(16K)、OPUS(16K)、SILK(8K)、OPUS(8K)
- DTMF mode:RFC2833、SIP INFO、INBAND
Network Security
- Network:TCP/UDP、HTTP、ARP/RARP、DNS、NTP、TFTP、TELNET、STUN
- IP:static ip,IP Dual redundant 2 - 100/1000 Base-T Ethernet for VoIP payload and signaling
- Management certification:Support administrator authentication to ensure the security of resources and data
- WEB configuration: Modify the configuration through the web interface, in both Chinese and English
- Upgrade: Web based user interface, gateway service, kernel and firmware upgrade
Sepecification
| Dimensions (L × W × H) (mm) Weight |
440(mm)*267(mm)*44(mm) 3.1kg |
|---|---|
Environment |
Operating temperature range: 0°C—45°C Storage temperature range: -20°C—85°C Humidity:8-90% non-condensing |
Network Interface |

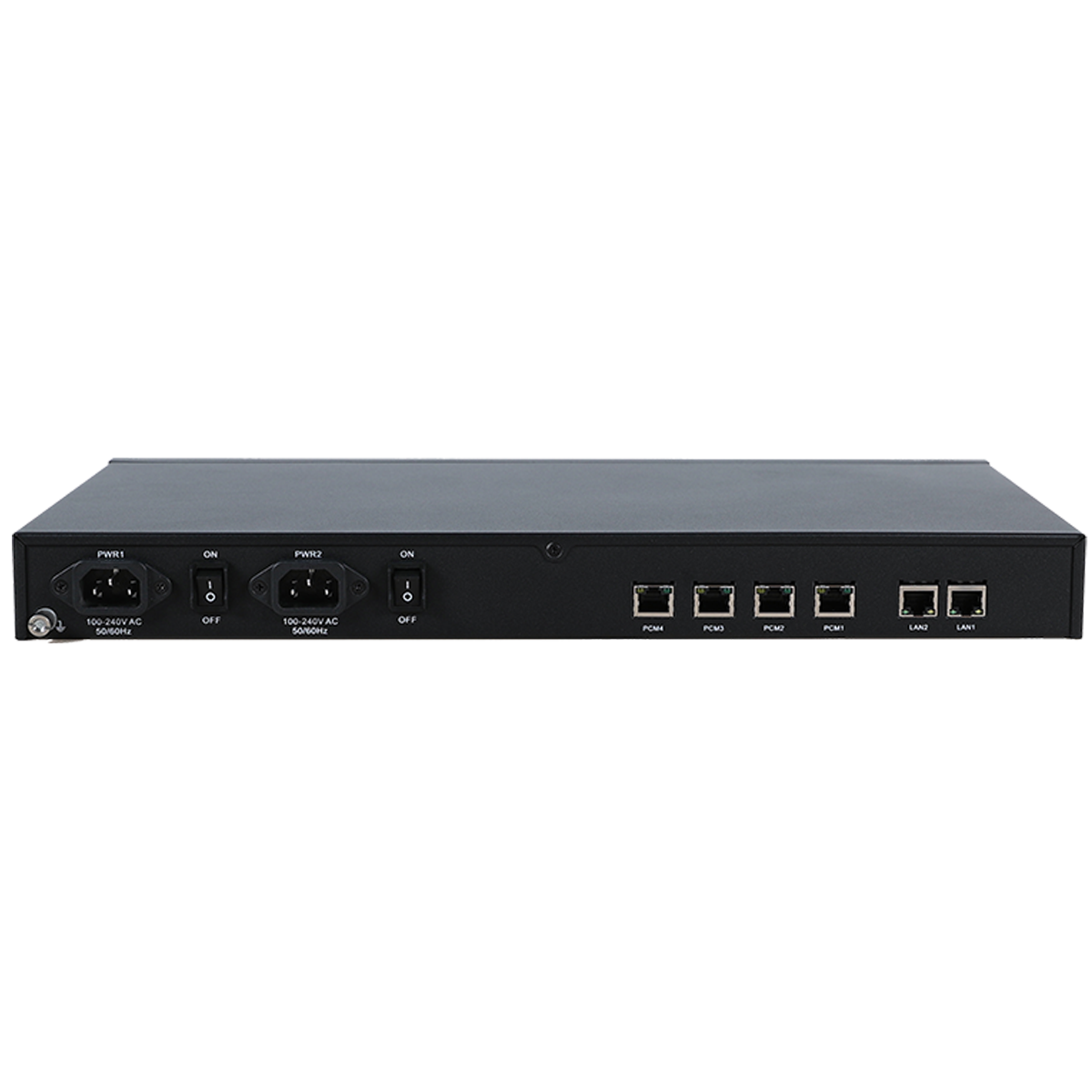

Rear I/O Type 1 — T1/E1 ,RJ45 interface Ports：1/2/4/8/16 Channels:30/60/120/320/480 |
Power |
100～240V AC Maximum power consumption：≤12W , Redundant power supply(Dual power system) |
Sample rate: |
8kHz |
CodeC Speed |
G.711A 64 kbps G.711U 64 kbps G.729A/B 8 kbps G723 5.3/6.3 kbps G722 64 kbps AMR-NB 4.75/5.15/5.90/6.70/7.40/7.95/10.20/12.20 kbps iLBC 13.3/15.2 kbps SILK(16K) 20 kbps OPUS(16K) 20 kbps SILK(8K) 20 kbps OPUS(8K) 20 kbps |
