Features
Basic
- TDM Call:call from TDM, and obtain IP address according to specified routing rules after number transformation
- IP Call:the incoming call from the VoIP network is connected to the TDM through routing and number transformation
- Number Transformation: delete the number at the head or tail of the number, or add prefix or suffix to the number
- TDM/ VoIP Routing: the user can set the routing path from IP to TDM or from TDM to IP
- Voice Capability: Echo Cancellation, Dynamic Jitter Buffer, VAD, CNG, PLC
Protocol
- Voice Codec:G.711A、G.711U、G.729A/B
- DTMF Mode: IRFC2833、SIP INFO、INBAND
- Sip Protocols:SIP V1.0/2.0、RFC3261, 3262, 3264
- Connectivity: Caller ID:DTMF/FSK ,Busy Tone Detection,Hangup Detection, Answer Detection, Caller ID Detection
- Disconnect Methods:Busy Tone, Polarity Reversal
Network &Application
- Network Protocol:TCP/UDP、HTTP、ARP/RARP、DNS、NTP、TFTP、TELNET、STUN
- IP:Static IP, PPPoE, DHCP Client,Dual network adaptor
- Management:Configuration Backup/Restore,Routing Rules based Prefixes,Syslog and CDR.,Caller/Called Number Manipulation
- Application Capabilities: Call waiting,Blind Transfer,Attend Transfer, Call forward on Busy Call forward on No Reply Unconditional Call Forward HotlineCall hold DND Call Pickup 3-way conference Voicemail
- Software: Syslog,Web login,Outward Test(
Specification
| Dimensions (L × W × H) (mm) Weight |

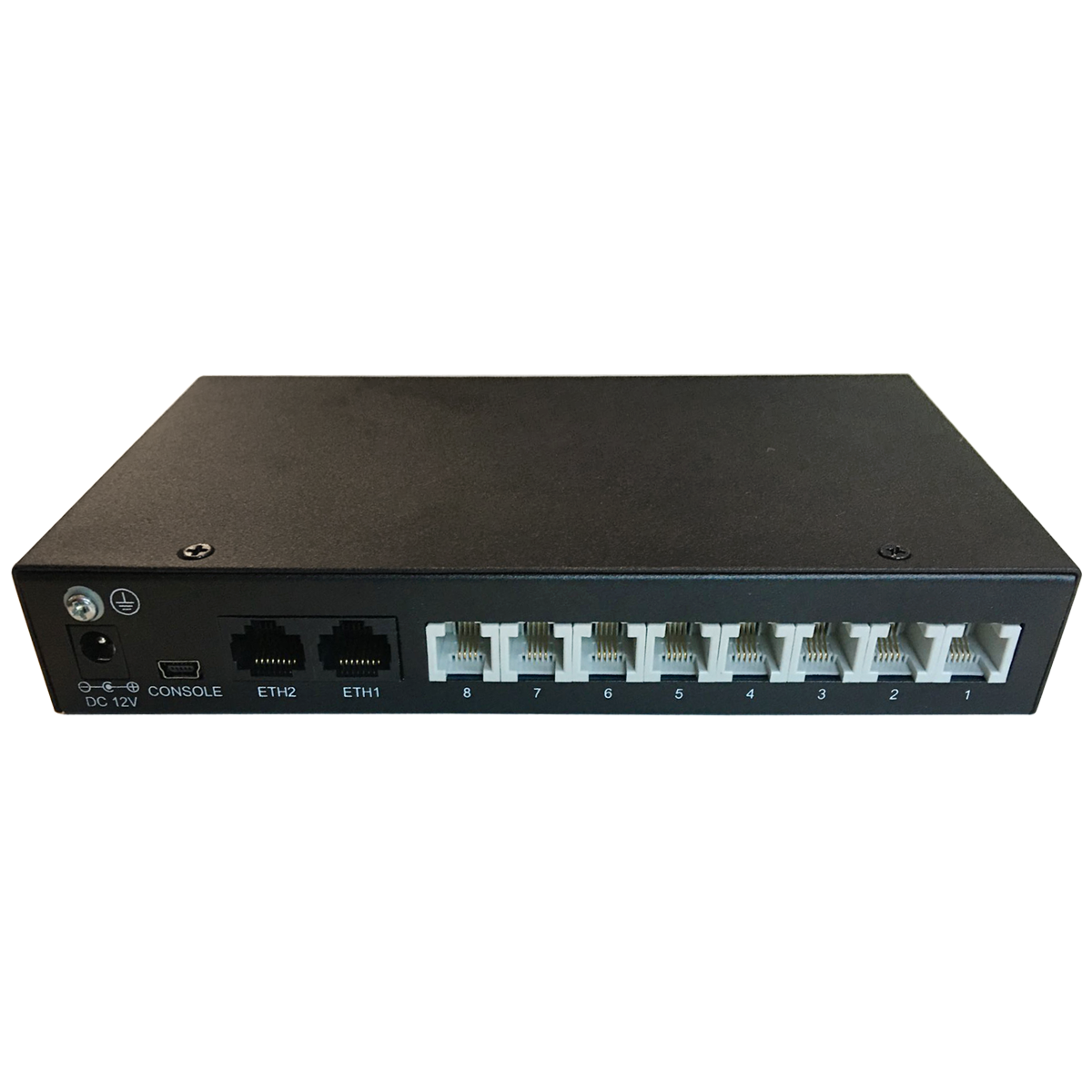

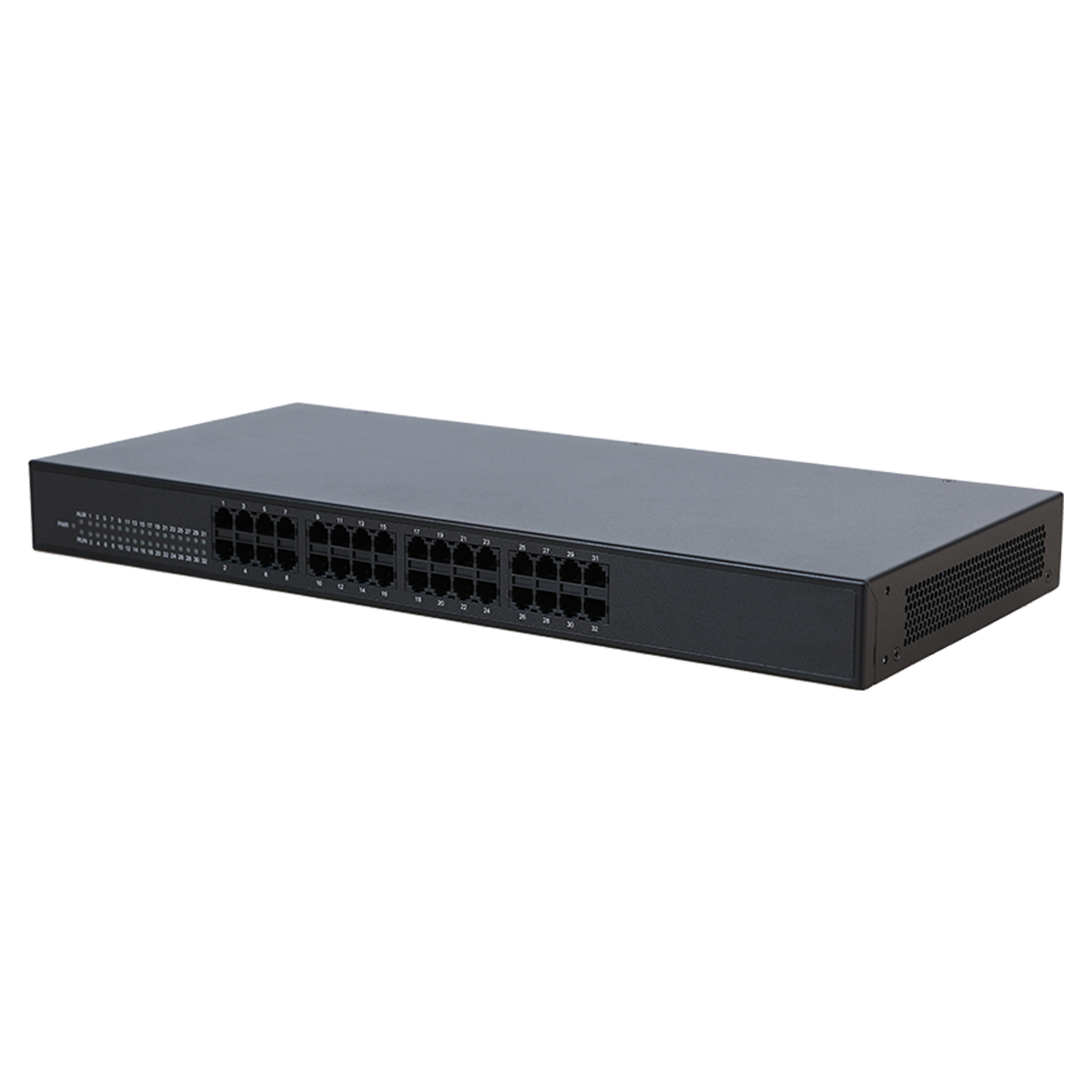

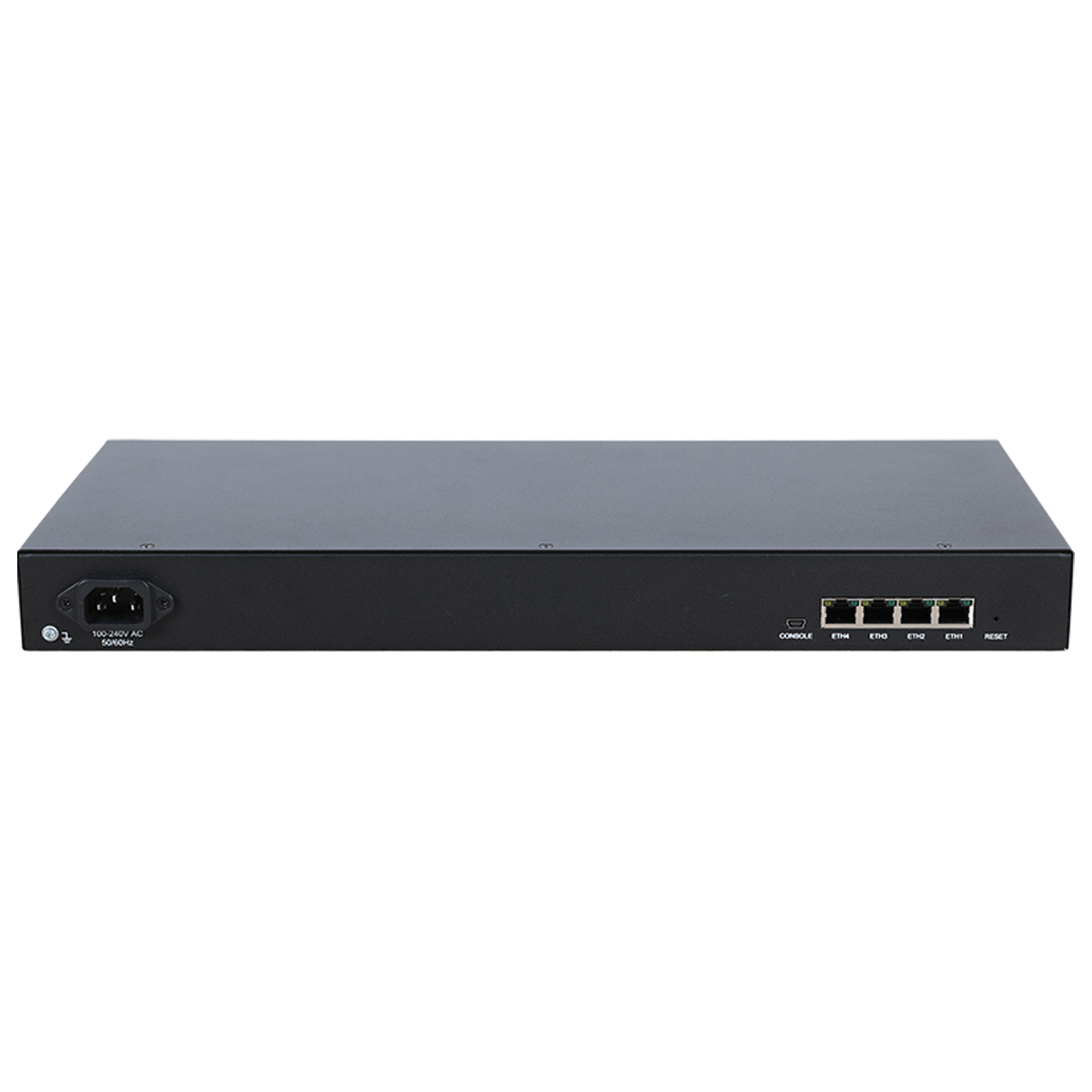

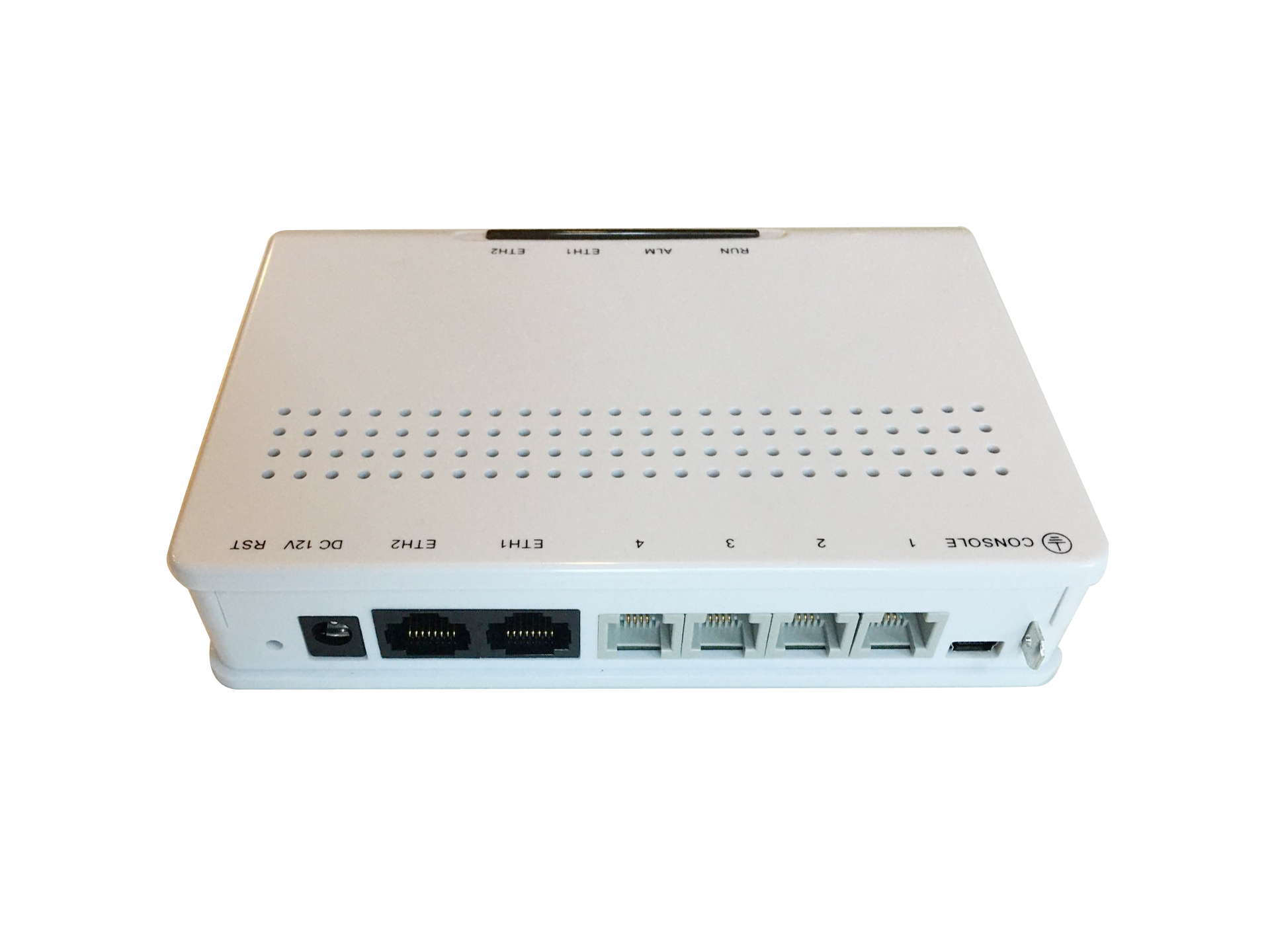

LC-1O1S LC2O 120×29×80 mm³ 0.13kg LC-4O LC-2O2S 140×100×30 mm³ 0.2kg LC-8O LC-4O4S 186×108×30mm³ 0.55kg LC-16O LC-8O8S 440×44×202mm³ 2.7kg LC-32O LC-16O16S 440×44×202mm³ 2.7kg |
|---|---|
Environment |
Operating temperature range: 0°C—45°C Storage temperature range: -20°C—85°C Humidity:8-90% non-condensing |
Network Interface |
Network Interface 10/100M Base-T Ethernet LAN port,
Connector 2 shielded female RJ-45 jack for LAN FXO interface：RJ11 |
Power |
LC-4O LC-2O2S LC-1O1S LC-2O：12V DC,1A LC-8O LC-4O4S：12V DC,1A LC-16O LC-8O8S：100～240V AC LC-32O LC-16O16S：100～240V AC |
Sample Rate |
8kHz |
CodeC speed |
G.711A 64 kbps G.711U 64 kbps G.729A/B 8 kbps G723 5.3/6.3 kbps G722 64 kbps AMR-NB 4.75/5.15/5.90/6.70/7.40/7.95/10.20/12.20 kbps iLBC 13.3/15.2 kbps SILK(16K) 20 kbps OPUS(16K) 20 kbps SILK(8K) 20 kbps OPUS(8K) 20 kbps |
